Sandvik Coromant

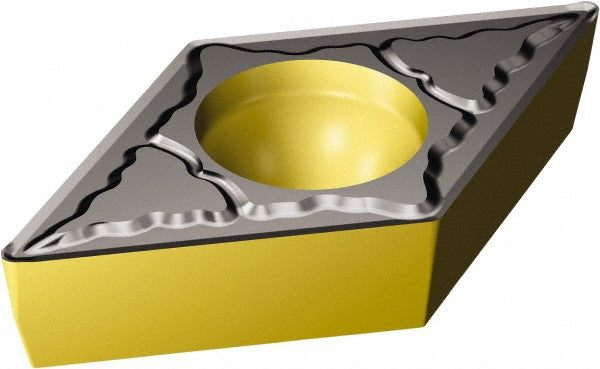

DCMT 07 02 08-MM 2220 Carbide Insert, Grade 2220, TiCN - Sandvik Coromant 7231364
MFR# 7231364ISO/ANSI# DCMT 07 02 08-MM 2220Series CoroTurn 107
$14.23List $18.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade2220
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7231364 is a DCMT 07 02 08-MM 2220 carbide indexable insert, grade 2220, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1102
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code21.52
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT 07 02 08-MM 2220
Manufacturer grade2220
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
