Sandvik Coromant

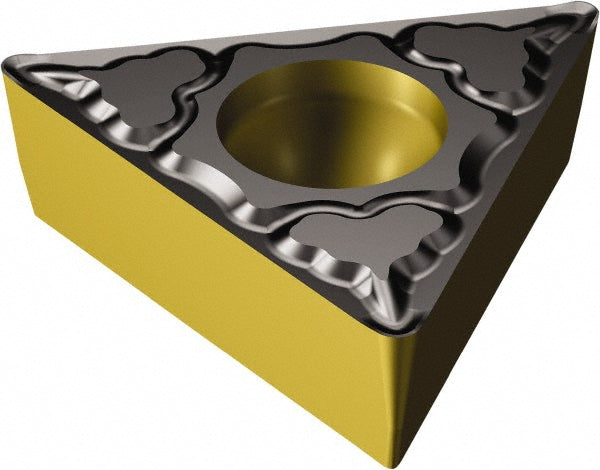

TCMT 11 03 04-MM 2220 Carbide Insert, Grade 2220, TiCN - Sandvik Coromant 7231447
MFR# 7231447ISO/ANSI# TCMT 11 03 04-MM 2220Series CoroTurn 107
$16.22List $20.79
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade2220
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7231447 is a TCMT 11 03 04-MM 2220 carbide indexable insert, grade 2220, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code221
Insert styleTCMT
Insert thickness in1/8
Iso codeTCMT 11 03 04-MM 2220
Manufacturer grade2220
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
