Sandvik Coromant

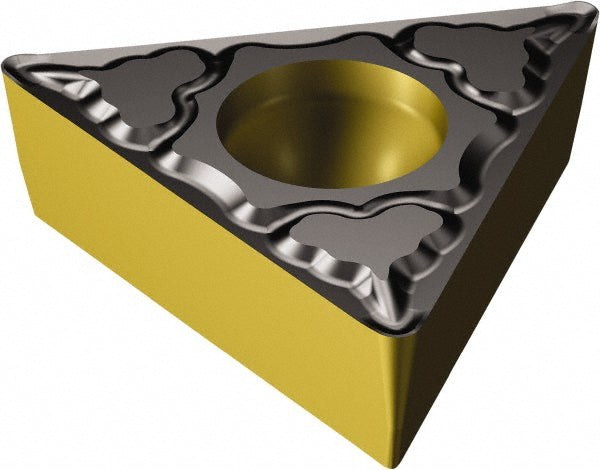

TCMT 16 T3 04-MM 2220 Carbide Insert, Grade 2220, TiCN - Sandvik Coromant 7231451
MFR# 7231451ISO/ANSI# TCMT 16 T3 04-MM 2220Series CoroTurn 107
$20.17List $25.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade2220
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7231451 is a TCMT 16 T3 04-MM 2220 carbide indexable insert, grade 2220, TiCN coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code32.51
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT 16 T3 04-MM 2220
Manufacturer grade2220
Relief angle7
Tolerance codeM
