Sandvik Coromant
WNMG 06 04 04-MF 2220 Carbide Insert, Grade 2220, TiCN - Sandvik Coromant 7231494
MFR# 7231494ISO/ANSI# WNMG 06 04 04-MF 2220Series T-Max P
$16.88List $21.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
Grade2220
MaterialCarbide
CoatingTiCN
Description

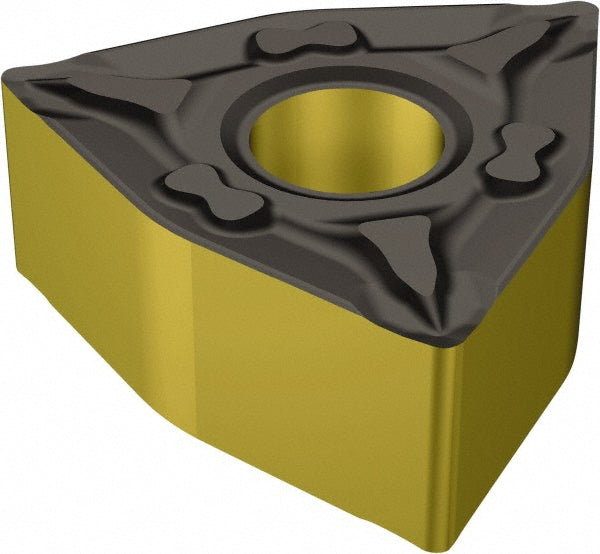

The Sandvik Coromant 7231494 is a WNMG 06 04 04-MF 2220 carbide indexable insert, grade 2220, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1500
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeTrigon
Insert size code331
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 06 04 04-MF 2220
Manufacturer grade2220
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
