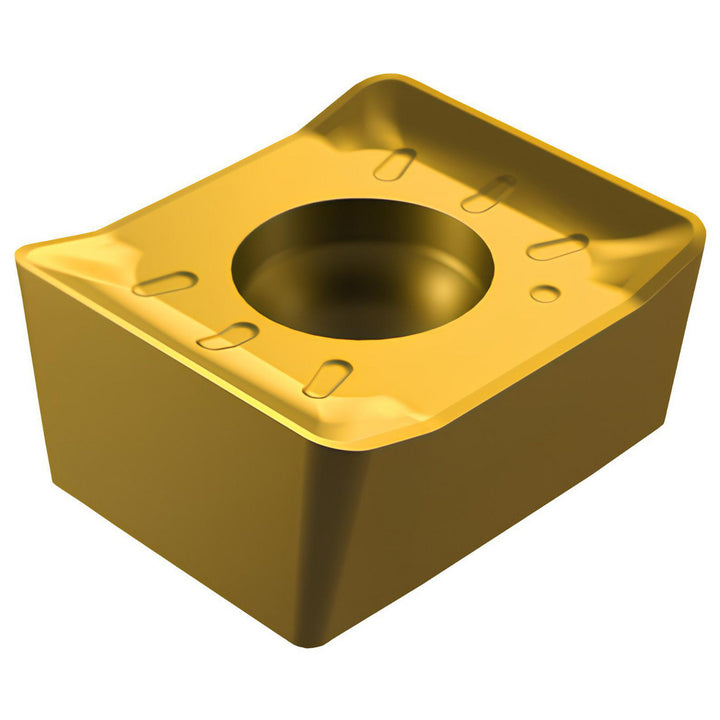

N331.1A-115008E-L50 2040 Solid Carbide Insert, Grade 2040, TiCrN - Sandvik Coromant 7295687

Sandvik Coromant

N331.1A-115008E-L50 2040 Solid Carbide Insert, Grade 2040, TiCrN - Sandvik Coromant 7295687

MFR# 7295687ISO/ANSI# N331.1A-115008E-L50 2040Cat# N331.1A-115008E-L50 2040Series N331.1A

$28.76List $36.88 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC29/64
ShapeRectangle
Grade2040
MaterialSolid Carbide
CoatingTiCrN

Description

The Sandvik Coromant 7295687 is a N331.1A-115008E-L50 2040 solid carbide indexable insert, grade 2040, TiCrN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeN331.1A-115008E-L50 2040
Chip breakerL50
Coating finishTiCrN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityL331.52
Cutting edge styleCorner Rounded
Hole diameter0.1811
Included angle degree90
Inscribed circle in29/64
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size11
Insert size code115008
Insert styleN331.1A
Iso codeN331.1A-115008E-L50 2040
Length0.4213
Length range0.4000 to 0.4500
Manufacturers catalog numberN331.1A-115008E-L50 2040
Manufacturer grade2040
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP45; M40; S30
Maximum depth of cut0.4213
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle13
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1964
Thickness range0.1850 to 0.2000
Width in29/64
