Sandvik Coromant
Carbide Insert, Grade 2334, AlTiCrN - Sandvik Coromant 7357695
MFR# 7357695Series CoroDrill 870
$129.68List $166.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Grade2334
CoatingAlTiCrN
Description

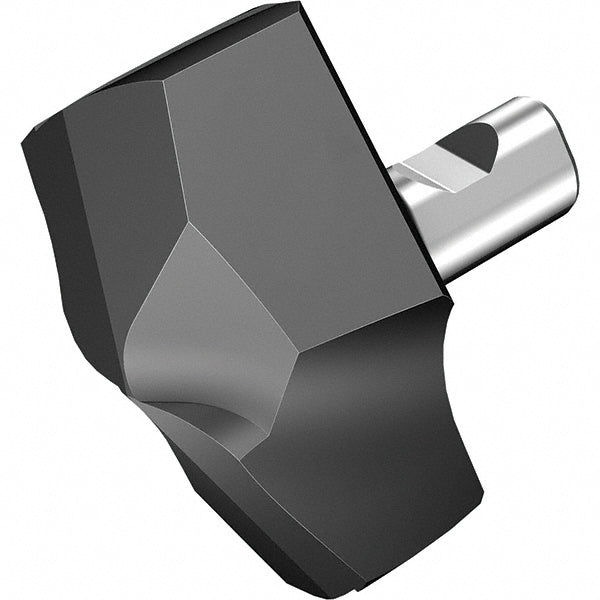

The Sandvik Coromant 7357695 is a carbide indexable insert, grade 2334, AlTiCrN coated. Suited for stainless steel, superalloys & titanium.
Specifications
ApplicationsSolidDrilling
Coating finishAlTiCrN
Coating processPVD
Coolant throughNo
Cutting diameter in17/32
Drill point angle142
Flute length (mm)6.00
Flute typeHelical
Functional length0.2331
Height (mm)8.00
Included angle degree142
Insert geometryMM
Insert holding methodClamp
Insert seat size13
Iso number870-1350-13-MM 2334
Manufacturer grade2334
Material gradeFine Grain
Number of flutes2
Overall length projection0.3150
Point typeStandard
Primary workpiece materialStainless Steel; Superalloys & Titanium
Spiral typeRegular Spiral
StyleCoroDrill 870
Tip materialSolid Carbide
