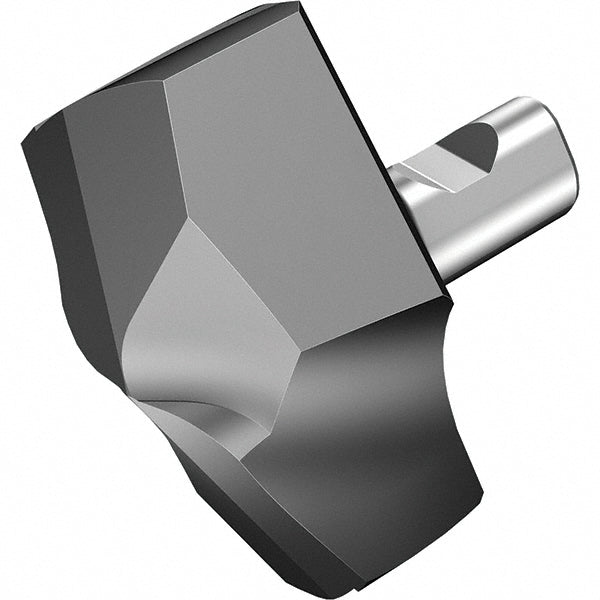

Carbide Insert, Grade 4334, TiAlN - Sandvik Coromant 7357728

Sandvik Coromant

Carbide Insert, Grade 4334, TiAlN - Sandvik Coromant 7357728

MFR# 7357728Series CoroDrill 870

$139.78List $179.28 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
Grade4334
CoatingTiAlN

Description

The Sandvik Coromant 7357728 is a carbide indexable insert, grade 4334, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsSolidDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in9/16
Drill point angle142
Flute length (mm)7.00
Flute typeHelical
Functional length0.2567
Height (mm)9.00
Included angle degree142
Insert geometryPM
Insert holding methodClamp
Insert seat size14
Iso number870-1429-14-PM 4334
Manufacturer grade4334
Material gradeFine Grain
Number of flutes2
Overall length projection0.3425
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeRegular Spiral
StyleCoroDrill 870
Tip materialSolid Carbide
