Sandvik Coromant
Carbide Insert, Grade 3334, AlTiCrN - Sandvik Coromant 7357836
MFR# 7357836Series CoroDrill 870
$153.26List $196.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Grade3334
CoatingAlTiCrN
Description

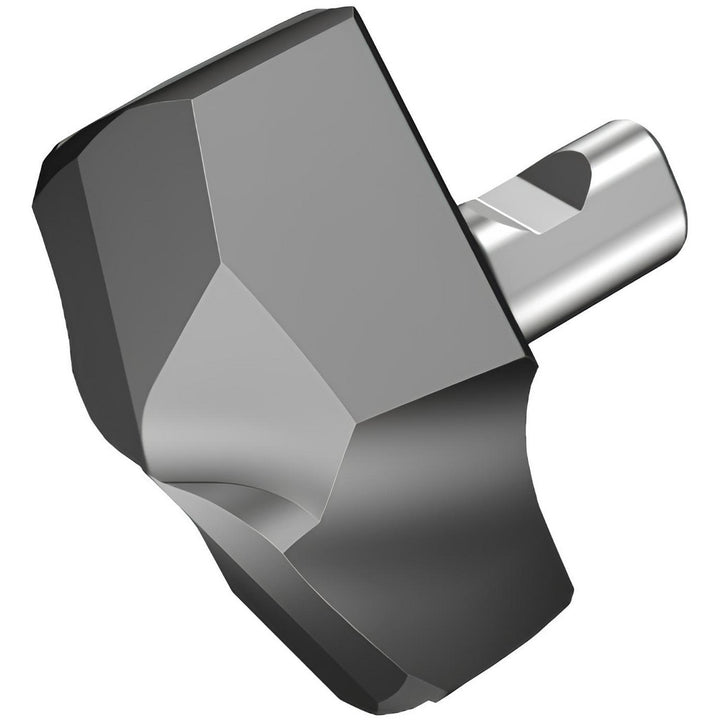

The Sandvik Coromant 7357836 is a carbide indexable insert, grade 3334, AlTiCrN coated. Suited for steel, cast iron.
Specifications
ApplicationsSolidDrilling
Coating finishAlTiCrN
Coating processPVD
Coolant throughNo
Cutting diameter0.6575
Drill point angle142
Flute length (mm)7.00
Flute typeHelical
Functional length0.2709
Height (mm)10.00
Included angle degree142
Insert geometryKM
Insert holding methodClamp
Insert seat size16
Iso number870-1670-16-KM 3334
Manufacturer grade3334
Material gradeFine Grain
Number of flutes2
Overall length projection0.3937
Point typeStandard
Primary workpiece materialSteel; Cast Iron
Spiral typeRegular Spiral
StyleCoroDrill 870
Tip materialSolid Carbide
