Sandvik Coromant

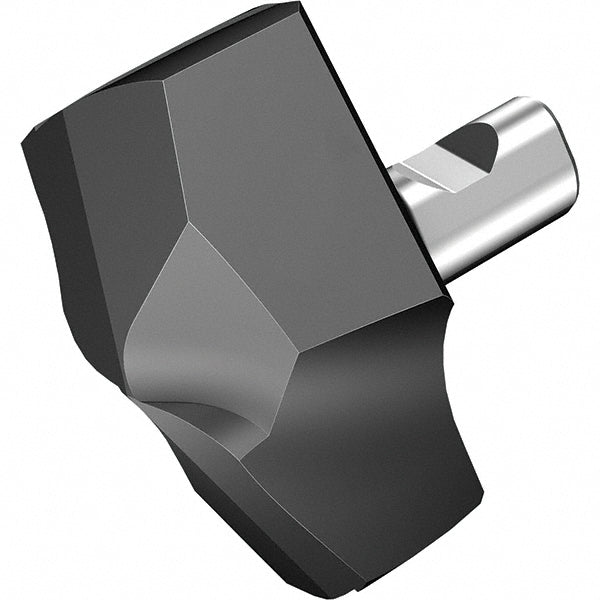

Carbide Insert, Grade 2334, AlTiCrN - Sandvik Coromant 7357937
MFR# 7357937Series CoroDrill 870
$161.68List $207.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Grade2334
CoatingAlTiCrN
Description
The Sandvik Coromant 7357937 is a carbide indexable insert, grade 2334, AlTiCrN coated. Suited for stainless steel, superalloys & titanium.
Specifications
ApplicationsSolidDrilling
Coating finishAlTiCrN
Coating processPVD
Coolant throughNo
Cutting diameter in3/4
Drill point angle142
Flute length (mm)9.00
Flute typeHelical
Functional length0.3551
Height in15/32
Included angle degree142
Insert geometryMM
Insert holding methodClamp
Insert seat size19
Iso number870-1905-19-MM 2334
Manufacturer grade2334
Material gradeFine Grain
Number of flutes2
Overall length projection0.4685
Point typeStandard
Primary workpiece materialStainless Steel; Superalloys & Titanium
Spiral typeRegular Spiral
StyleCoroDrill 870
Tip materialSolid Carbide
