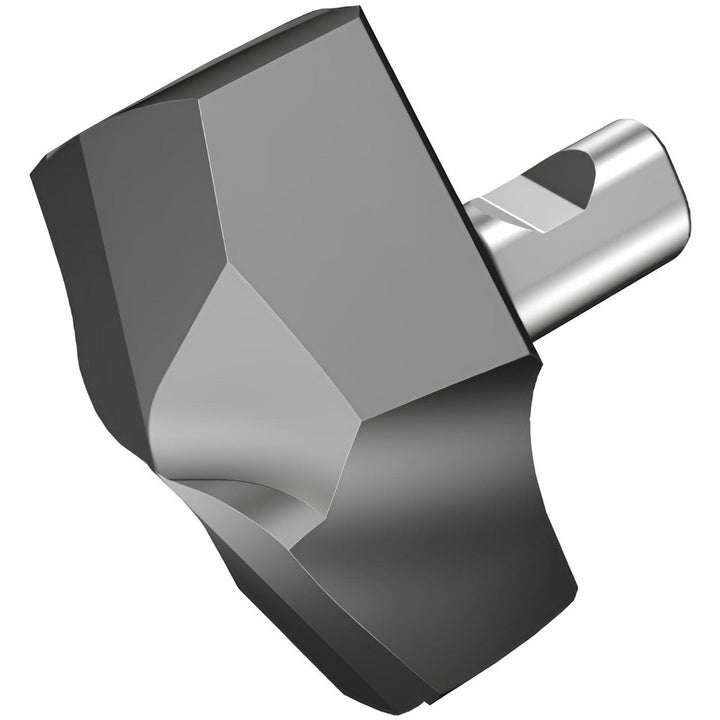

Carbide Insert, Grade 4334, TiAlN - Sandvik Coromant 7358156

Sandvik Coromant

Carbide Insert, Grade 4334, TiAlN - Sandvik Coromant 7358156

MFR# 7358156Series CoroDrill 870

$194.52List $249.48 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
Grade4334
CoatingTiAlN

Description

The Sandvik Coromant 7358156 is a carbide indexable insert, grade 4334, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsSolidDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.9409
Drill point angle142
Flute length (mm)11.00
Flute typeHelical
Functional length0.4287
Height (mm)14.00
Included angle degree142
Insert geometryPM
Insert holding methodClamp
Insert seat size23
Iso number870-2390-23-PM 4334
Manufacturer grade4334
Material gradeFine Grain
Number of flutes2
Overall length projection0.5708
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeRegular Spiral
StyleCoroDrill 870
Tip materialSolid Carbide
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
