Sandvik Coromant
5/16-18 UNC High-Speed Steel-E-PM Tap, TiN - Sandvik Coromant 7459667
MFR# 7459667Series T400-PM103AE
$134.73List $172.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size5/16-18
CoatingTiN
Description

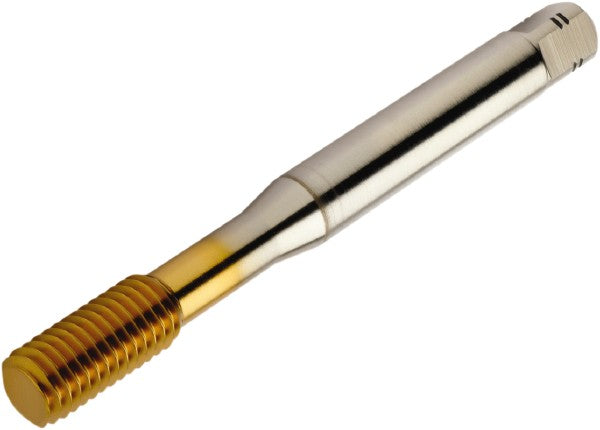

The Sandvik Coromant 7459667 is a 5/16-18 UNC High-Speed Steel-E-PM tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2BX
Coating finishTiN
Coolant throughYes
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-PM
Material application codeP
Material gradeF125
Oil grooves5
Overall length3.1496
Shank diameter0.2550
Square size0.1910
Tapping depth1.1811
Thread directionRight Hand
Thread length0.3937
Thread size in5/16-18
Thread standardUNC
Trade nameCoroTap 400
