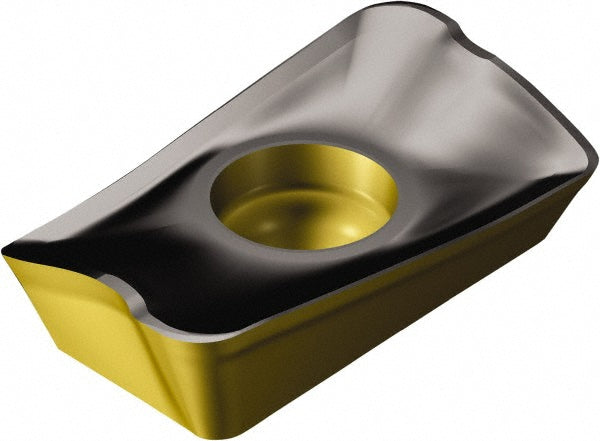

R390-17 04 24E-PM 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564389

Sandvik Coromant

R390-17 04 24E-PM 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564389

MFR# 7564389ISO/ANSI# R390-17 04 24E-PM 4340Cat# R390-17 04 24E-PM 4340Series R390

$36.76List $47.14 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade4340
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564389 is a R390-17 04 24E-PM 4340 solid carbide indexable insert, grade 4340, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi codeR390-17 04 24E-PM 4340
Chip breakerPM
Coating finishTiCN
Coating processCVD
Corner radius0.0945
Cutter series compatibilityR390
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170424
Insert styleR390
Iso codeR390-17 04 24E-PM 4340
Length0.6181
Length range0.6000 to 0.6500
Manufacturers catalog numberR390-17 04 24E-PM 4340
Manufacturer grade4340
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeP40; M40; K40
Maximum depth of cut0.6181
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle22
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.3780
