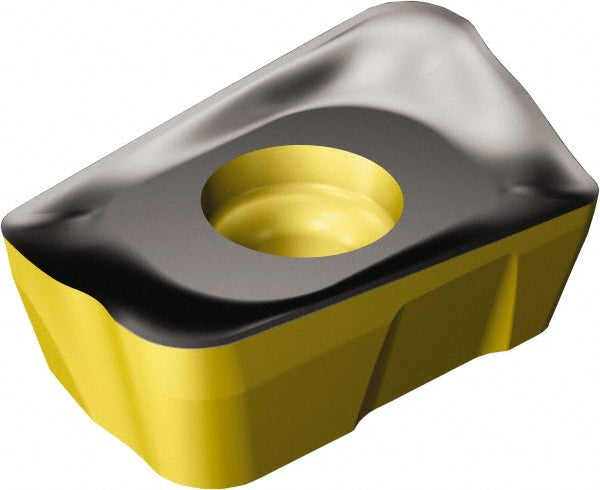

R390-18 06 08M-PM 4330 Solid Carbide Insert, Grade 4330, TiCN - Sandvik Coromant 7564398

Sandvik Coromant

R390-18 06 08M-PM 4330 Solid Carbide Insert, Grade 4330, TiCN - Sandvik Coromant 7564398

MFR# 7564398ISO/ANSI# R390-18 06 08M-PM 4330Cat# R390-18 06 08M-PM 4330Series R390

$32.45List $41.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade4330
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564398 is a R390-18 06 08M-PM 4330 solid carbide indexable insert, grade 4330, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeR390-18 06 08M-PM 4330
Chip breakerPM
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityM-40; R390
Cutting edge styleCorner Rounded
Hole diameter0.1634
Included angle degree90
Inscribed circle0.4331
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code180608
Insert styleR390
Iso codeR390-18 06 08M-PM 4330
Length0.6063
Length range0.6000 to 0.6500
Manufacturers catalog numberR390-18 06 08M-PM 4330
Manufacturer grade4330
Material applicationSteel; Cast Iron
Material gradeP30; M30; K30
Maximum depth of cut0.6299
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2492
Thickness range0.2350 to 0.2500
Width0.4331
