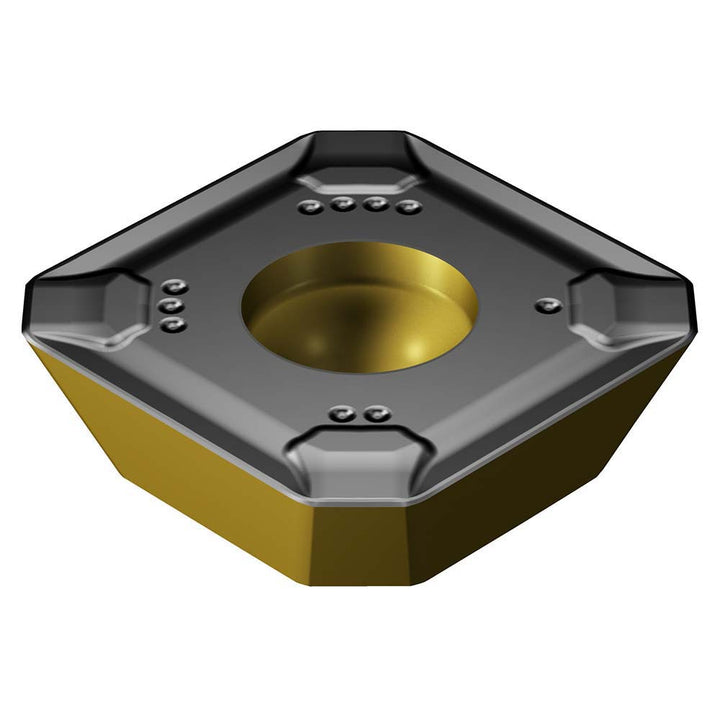

R245-12 T3 M-PM 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564442

Sandvik Coromant

R245-12 T3 M-PM 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564442

MFR# 7564442ISO/ANSI# R245-12 T3 M-PM 4340Cat# R245-12 T3 M-PM 4340Series R245

$21.32List $27.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade4340
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564442 is a R245-12 T3 M-PM 4340 solid carbide indexable insert, grade 4340, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi codeR245-12 T3 M-PM 4340
Chip breakerPM
Coating finishTiCN
Coating processCVD
Corner radius0.0591
Cutter series compatibilityR245
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.5276
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code12T3
Insert styleR245
Iso codeR245-12 T3 M-PM 4340
Length0.5276
Length range0.5000 to 0.6000
Manufacturers catalog numberR245-12 T3 M-PM 4340
Manufacturer grade4340
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeP40; M40; K40
Maximum depth of cut0.2559
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle15
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.5276
