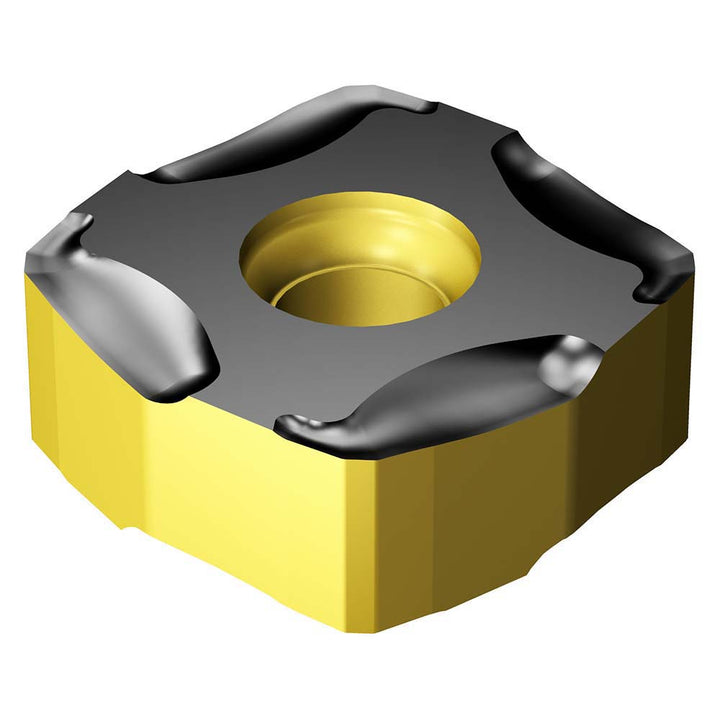

R365-1505ZNE-PM 4330 Solid Carbide Insert, Grade 4330, TiCN - Sandvik Coromant 7564446

Sandvik Coromant

R365-1505ZNE-PM 4330 Solid Carbide Insert, Grade 4330, TiCN - Sandvik Coromant 7564446

MFR# 7564446ISO/ANSI# R365-1505ZNE-PM 4330Cat# R365-1505ZNE-PM 4330Series R365

$35.20List $45.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade4330
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564446 is a R365-1505ZNE-PM 4330 solid carbide indexable insert, grade 4330, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeR365-1505ZNE-PM 4330
Chip breakerPM
Coating finishTiCN
Coating processCVD
Corner radius0.0118
Cutter series compatibilityR365
Cutting edge styleCorner Rounded
Hole diameter0.1811
Included angle degree90
Inscribed circle0.5906
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size15
Insert size code1505
Insert styleR365
Iso codeR365-1505ZNE-PM 4330
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog numberR365-1505ZNE-PM 4330
Manufacturer grade4330
Material applicationSteel; Cast Iron
Material gradeP30; M30; K30
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle1
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2228
Thickness range0.2200 to 0.2350
Width0.5906
