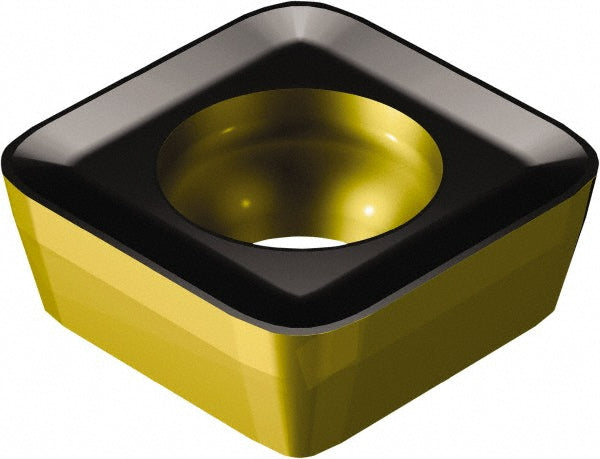

R210-14 05 14E-PM 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564456

Sandvik Coromant

R210-14 05 14E-PM 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564456

MFR# 7564456ISO/ANSI# R210-14 05 14E-PM 4340Cat# R210-14 05 14E-PM 4340Series R210

$31.70List $40.65 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade4340
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564456 is a R210-14 05 14E-PM 4340 solid carbide indexable insert, grade 4340, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi codeR210-14 05 14E-PM 4340
Chip breakerPM
Coating finishTiCN
Coating processCVD
Corner radius0.0551
Cutter series compatibilityR210
Cutting edge styleCorner Rounded
Hole diameter0.2244
Included angle degree90
Inscribed circle0.5748
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code140514
Insert styleR210
Iso codeR210-14 05 14E-PM 4340
Length0.5748
Length range0.5000 to 0.6000
Manufacturers catalog numberR210-14 05 14E-PM 4340
Manufacturer grade4340
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeP40; M40; K40
Maximum depth of cut0.0787
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle10
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2071
Thickness range0.2000 to 0.2200
Width0.5748
