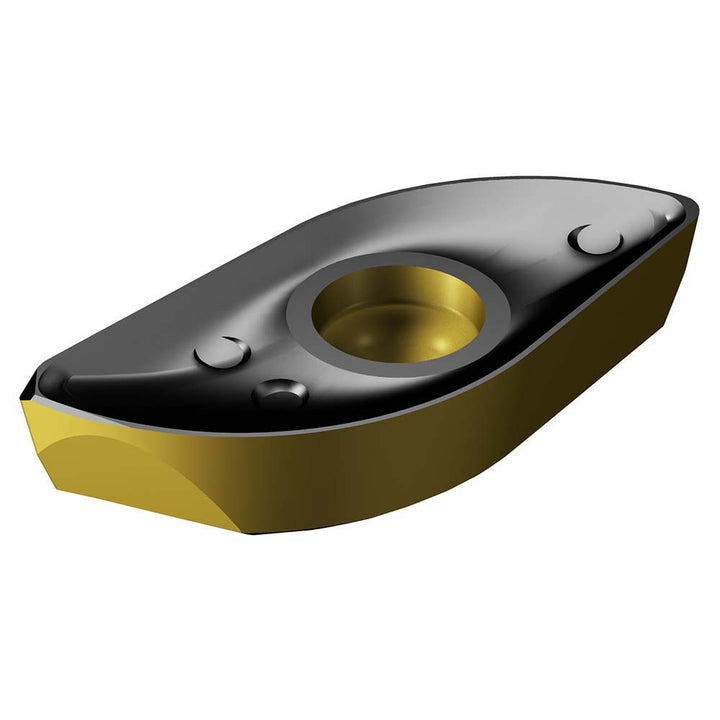

R216-32 06 M-M 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564466

Sandvik Coromant

R216-32 06 M-M 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564466

MFR# 7564466ISO/ANSI# R216-32 06 M-M 4340Cat# R216-32 06 M-M 4340Series R216

$77.55List $99.47 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeBall Nose
Grade4340
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564466 is a R216-32 06 M-M 4340 solid carbide indexable insert, grade 4340, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi codeR216-32 06 M-M 4340
Chip breakerM
Coating finishTiCN
Coating processCVD
Convex radius0.6299
Cutter series compatibilityR216
Hole diameter0.2323
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size32
Insert size code3206
Insert styleR216
Iso codeR216-32 06 M-M 4340
Length1.1260
Length range1.0000+
Manufacturers catalog numberR216-32 06 M-M 4340
Manufacturer grade4340
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeP40; M40; K40
Maximum depth of cut1.1260
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/4
Thickness range0.2500 to 0.3500
