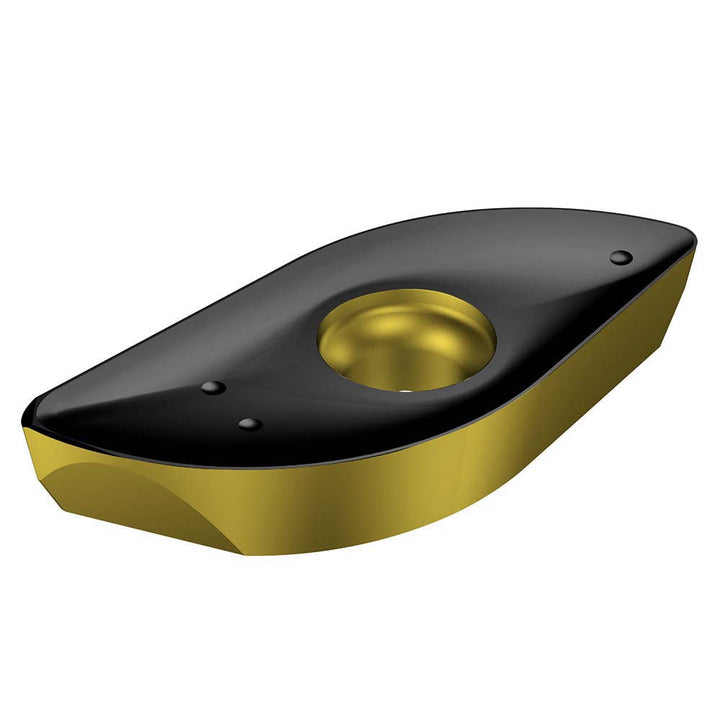

RA216-13 02 M-M 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564475

Sandvik Coromant

RA216-13 02 M-M 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564475

MFR# 7564475ISO/ANSI# RA216-13 02 M-M 4340Cat# RA216-13 02 M-M 4340Series RA216

$43.37List $55.62 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeBall Nose
Grade4340
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564475 is a RA216-13 02 M-M 4340 solid carbide indexable insert, grade 4340, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi codeRA216-13 02 M-M 4340
Chip breakerM
Coating finishTiCN
Coating processCVD
Convex radius0.2559
Cutter series compatibilityRA216
Cutting edge styleRounded
Hole diameter0.1142
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size13
Insert size code1302
Insert styleRA216
Iso codeRA216-13 02 M-M 4340
Length0.4440
Length range0.4000 to 0.4500
Manufacturers catalog numberRA216-13 02 M-M 4340
Manufacturer grade4340
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeP40; M40; K40
Maximum depth of cut0.4440
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/32
Thickness range0.0000 to 0.1000
