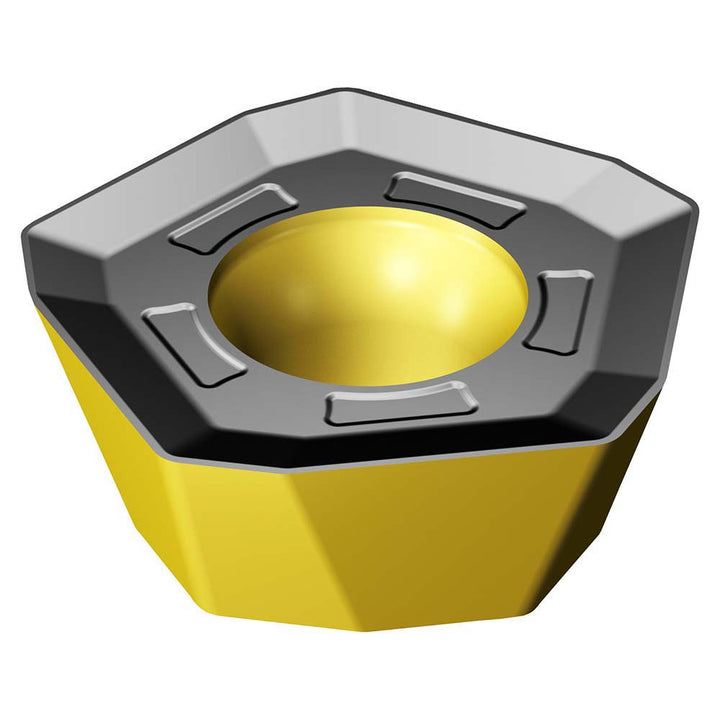

419R-1405M-PM 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564478

Sandvik Coromant

419R-1405M-PM 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564478

MFR# 7564478ISO/ANSI# 419R-1405M-PM 4340Cat# 419R-1405M-PM 4340Series 419

$26.74List $34.29 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/32
ShapePentagon
Grade4340
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564478 is a 419R-1405M-PM 4340 solid carbide indexable insert, grade 4340, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi code419R-1405M-PM 4340
Chip breakerPM
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibility419
Cutting edge styleCorner Rounded
Hole diameter0.2165
Included angle degree108
Inscribed circle in17/32
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapePentagon
Insert size14
Insert size code1405
Insert style419
Iso code419R-1405M-PM 4340
Length in17/32
Length range0.5000 to 0.6000
Manufacturers catalog number419R-1405M-PM 4340
Manufacturer grade4340
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeP40; M40; K40
Maximum depth of cut0.0787
Multi use toolYes
Number of cutting edges5
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2154
Thickness range0.2000 to 0.2200
Width in17/32
