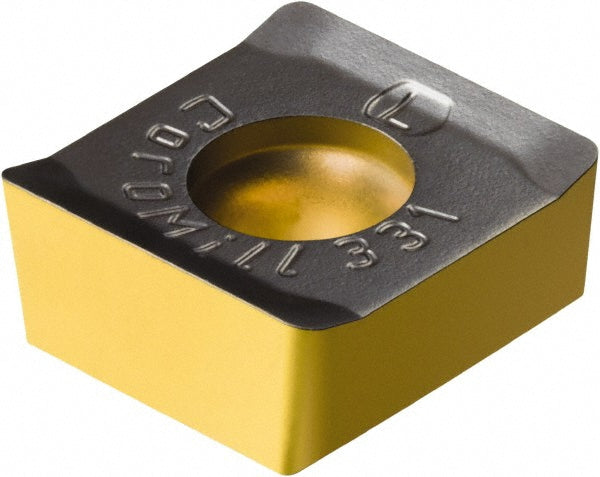

N331.1A-04 35 05H-PL4330 Solid Carbide Insert, Grade 4330, TiCN - Sandvik Coromant 7564532

Sandvik Coromant

N331.1A-04 35 05H-PL4330 Solid Carbide Insert, Grade 4330, TiCN - Sandvik Coromant 7564532

MFR# 7564532ISO/ANSI# N331.1A-04 35 05H-PL4330Cat# N331.1A-04 35 05H-PL4330Series N331.1A

$24.96List $32.02 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
Grade4330
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564532 is a N331.1A-04 35 05H-PL4330 solid carbide indexable insert, grade 4330, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeN331.1A-04 35 05H-PL4330
Chip breakerPL
Coating finishTiCN
Coating processCVD
Corner radius0.0197
Cutter series compatibilityN331.32
Cutting edge styleCorner Rounded
Hole diameter0.1024
Included angle degree90
Inscribed circle0.3740
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size04
Insert size code043505
Insert styleN331.1A
Iso codeN331.1A-04 35 05H-PL4330
Length0.1811
Length range0.0000 to 0.3200
Manufacturers catalog numberN331.1A-04 35 05H-PL4330
Manufacturer grade4330
Material applicationSteel; Cast Iron
Material gradeP30; M30; K30
Maximum depth of cut0.1811
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1378
Thickness range0.1250 to 0.1500
Width0.3740
