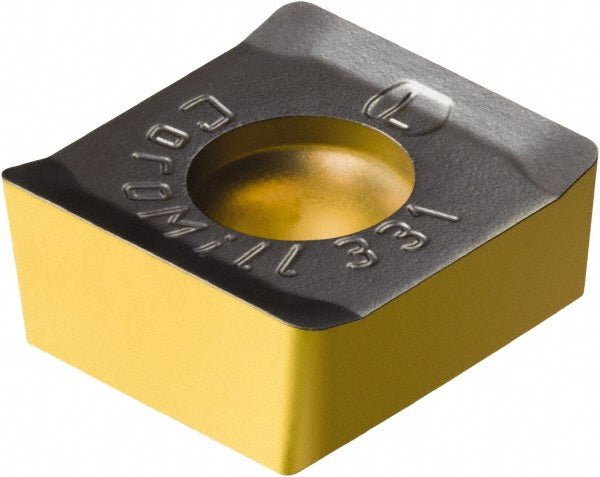

N331.1A-11 50 08H-PL4330 Solid Carbide Insert, Grade 4330, TiCN - Sandvik Coromant 7564540

Sandvik Coromant

N331.1A-11 50 08H-PL4330 Solid Carbide Insert, Grade 4330, TiCN - Sandvik Coromant 7564540

MFR# 7564540ISO/ANSI# N331.1A-11 50 08H-PL4330Cat# N331.1A-11 50 08H-PL4330Series N331.1A

$28.04List $35.96 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC29/64
ShapeRectangle
Grade4330
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564540 is a N331.1A-11 50 08H-PL4330 solid carbide indexable insert, grade 4330, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeN331.1A-11 50 08H-PL4330
Chip breakerPL
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityL331.52
Cutting edge styleCorner Rounded
Hole diameter0.1811
Included angle degree90
Inscribed circle in29/64
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size11
Insert size code115008
Insert styleN331.1A
Iso codeN331.1A-11 50 08H-PL4330
Length0.4213
Length range0.4000 to 0.4500
Manufacturers catalog numberN331.1A-11 50 08H-PL4330
Manufacturer grade4330
Material applicationSteel; Cast Iron
Material gradeP30; M30; K30
Maximum depth of cut0.4213
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1949
Thickness range0.1850 to 0.2000
Width in29/64
