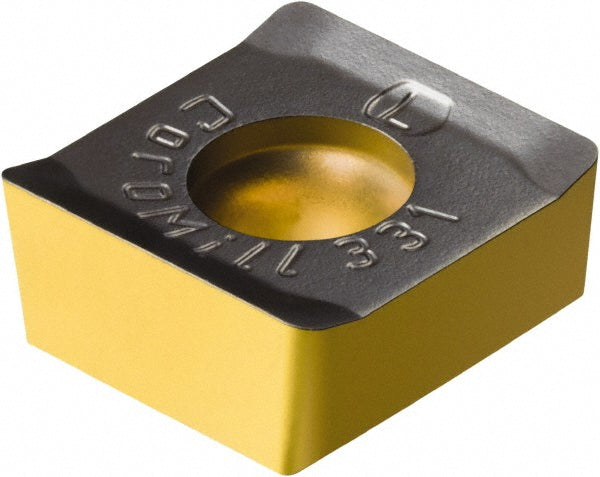

N331.1A-08 45 08H-PL4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564556

Sandvik Coromant

N331.1A-08 45 08H-PL4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564556

MFR# 7564556ISO/ANSI# N331.1A-08 45 08H-PL4340Cat# N331.1A-08 45 08H-PL4340Series N331.1A

$24.96List $32.02 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
Grade4340
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564556 is a N331.1A-08 45 08H-PL4340 solid carbide indexable insert, grade 4340, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi codeN331.1A-08 45 08H-PL4340
Chip breakerPL
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityL331.52C
Cutting edge styleCorner Rounded
Hole diameter0.1417
Included angle degree90
Inscribed circle0.3740
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size08
Insert size code084508
Insert styleN331.1A
Iso codeN331.1A-08 45 08H-PL4340
Length0.3031
Length range0.0000 to 0.3200
Manufacturers catalog numberN331.1A-08 45 08H-PL4340
Manufacturer grade4340
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeP40; M40; K40
Maximum depth of cut0.3031
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1752
Thickness range0.1750 to 0.1850
Width0.3740
