Sandvik Coromant

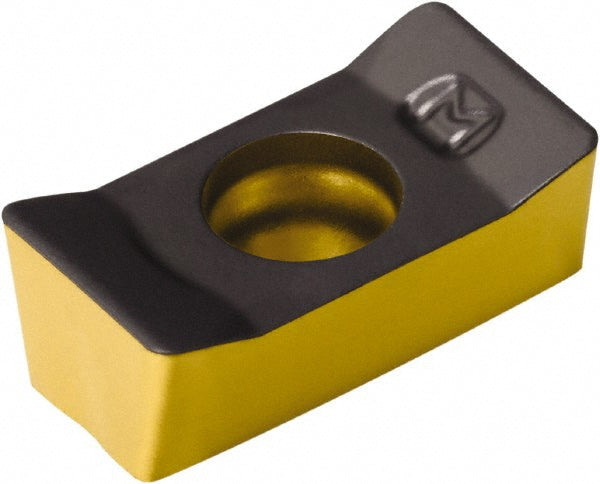

N331.1A-11 50 08M-PM4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564559
MFR# 7564559ISO/ANSI# N331.1A-11 50 08M-PM4340Cat# N331.1A-11 50 08M-PM4340Series N331.1A
$19.41List $24.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC29/64
ShapeRectangle
Grade4340
MaterialSolid Carbide
CoatingTiCN
Description
The Sandvik Coromant 7564559 is a N331.1A-11 50 08M-PM4340 solid carbide indexable insert, grade 4340, TiCN coated. Suited for steel, stainless steel, cast iron.
Specifications
Ansi codeN331.1A-11 50 08M-PM4340
Chip breakerPM
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityL331.52
Cutting edge styleCorner Rounded
Hole diameter0.1811
Included angle degree90
Inscribed circle in29/64
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size11
Insert size code115008
Insert styleN331.1A
Iso codeN331.1A-11 50 08M-PM4340
Length0.4213
Length range0.4000 to 0.4500
Manufacturers catalog numberN331.1A-11 50 08M-PM4340
Manufacturer grade4340
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeP40; M40; K40
Maximum depth of cut0.4213
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1949
Thickness range0.1850 to 0.2000
Width in29/64
