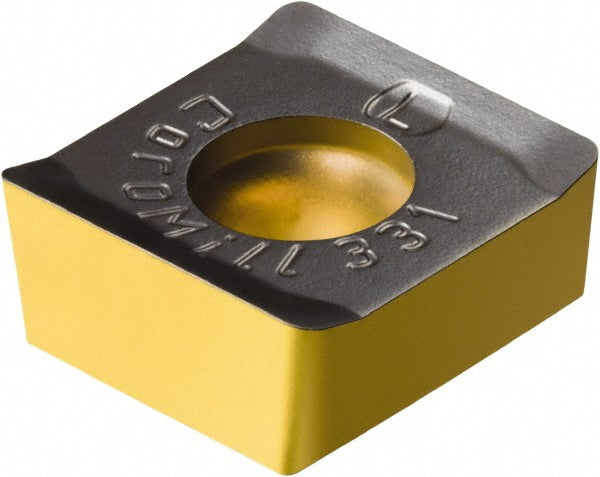

N331.1A-14 50 08H-PL4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564560

Sandvik Coromant

N331.1A-14 50 08H-PL4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564560

MFR# 7564560ISO/ANSI# N331.1A-14 50 08H-PL4340Cat# N331.1A-14 50 08H-PL4340Series N331.1A

$31.28List $40.12 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC29/64
ShapeRectangle
Grade4340
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564560 is a N331.1A-14 50 08H-PL4340 solid carbide indexable insert, grade 4340, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi codeN331.1A-14 50 08H-PL4340
Chip breakerPL
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityN331.32
Cutting edge styleCorner Rounded
Hole diameter0.1811
Included angle degree90
Inscribed circle in29/64
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size14
Insert size code145008
Insert styleN331.1A
Iso codeN331.1A-14 50 08H-PL4340
Length0.5394
Length range0.5000 to 0.6000
Manufacturers catalog numberN331.1A-14 50 08H-PL4340
Manufacturer grade4340
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeP40; M40; K40
Maximum depth of cut0.5394
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1949
Thickness range0.1850 to 0.2000
Width in29/64
