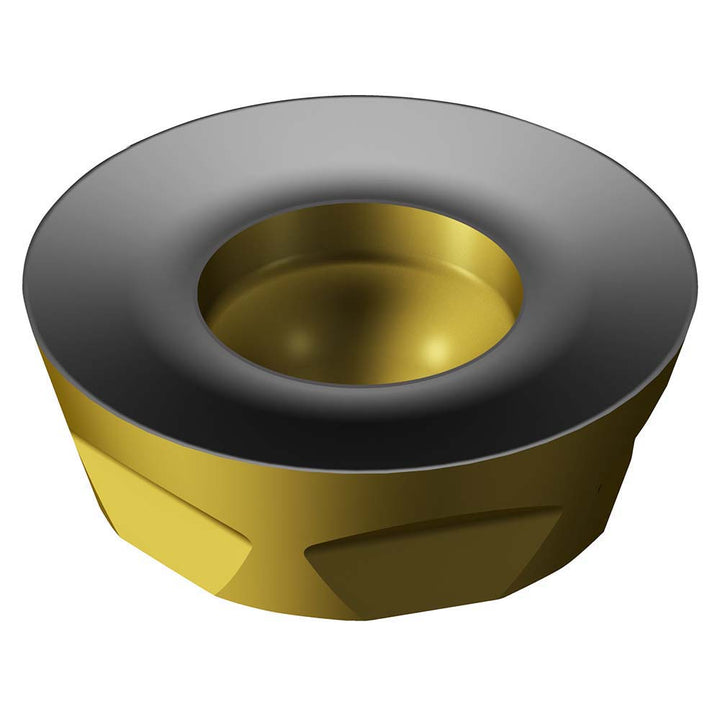

R300-0932M-PH 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564574

Sandvik Coromant

R300-0932M-PH 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564574

MFR# 7564574ISO/ANSI# R300-0932M-PH 4340Cat# R300-0932M-PH 4340Series R300

$13.02List $16.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeRound
Grade4340
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564574 is a R300-0932M-PH 4340 solid carbide indexable insert, grade 4340, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi codeR300-0932M-PH 4340
Chip breakerPH
Coating finishTiCN
Coating processCVD
Convex radius0.1875
Cutter series compatibilityRA300
Cutting edge styleRounded
Hole diameter0.1732
Included angle degree360
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size09
Insert size code0932
Insert styleR300
Iso codeR300-0932M-PH 4340
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberR300-0932M-PH 4340
Manufacturer grade4340
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeP40; M40; K40
Maximum depth of cut0.0937
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in3/8
