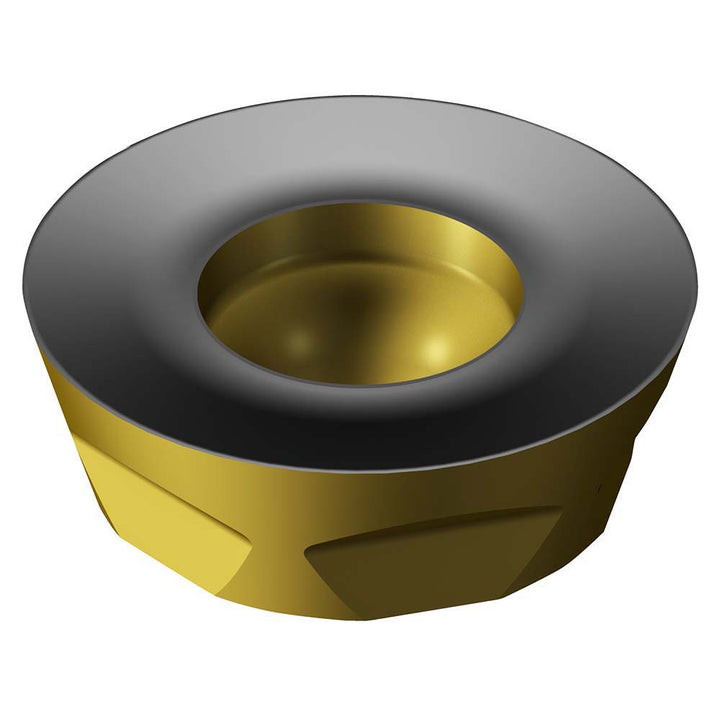

R300-1240M-PH 4330 Solid Carbide Insert, Grade 4330, TiCN - Sandvik Coromant 7564582

Sandvik Coromant

R300-1240M-PH 4330 Solid Carbide Insert, Grade 4330, TiCN - Sandvik Coromant 7564582

MFR# 7564582ISO/ANSI# R300-1240M-PH 4330Cat# R300-1240M-PH 4330Series R300

$16.29List $20.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
Grade4330
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564582 is a R300-1240M-PH 4330 solid carbide indexable insert, grade 4330, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeR300-1240M-PH 4330
Chip breakerPH
Coating finishTiCN
Coating processCVD
Convex radius0.2362
Corner radius (mm)6.00
Cutter series compatibilityR300
Cutting edge styleRounded
Hole diameter0.1614
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1240
Insert styleR300
Iso codeR300-1240M-PH 4330
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberR300-1240M-PH 4330
Manufacturer grade4330
Material applicationSteel; Cast Iron
Material gradeP30; M30; K30
Maximum depth of cut0.1181
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.4724
