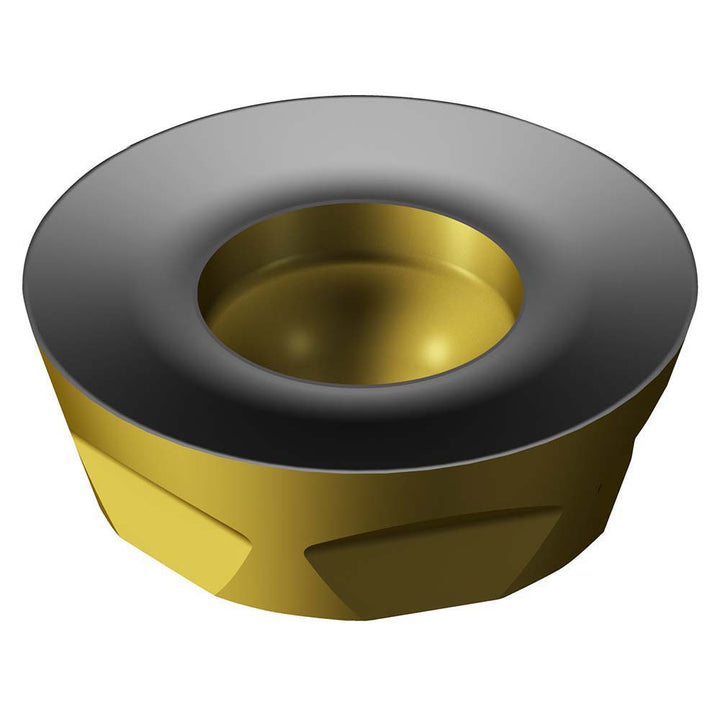

R300-2570M-PM 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564602

Sandvik Coromant

R300-2570M-PM 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564602

MFR# 7564602ISO/ANSI# R300-2570M-PM 4340Cat# R300-2570M-PM 4340Series R300

$33.61List $43.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1
ShapeRound
Grade4340
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564602 is a R300-2570M-PM 4340 solid carbide indexable insert, grade 4340, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi codeR300-2570M-PM 4340
Chip breakerPM
Coating finishTiCN
Coating processCVD
Convex radius0.5000
Cutter series compatibilityRA300
Cutting edge styleRounded
Hole diameter0.2992
Included angle degree360
Inscribed circle in1
Inscribed circle range1.0000+
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size25
Insert size code2570
Insert styleR300
Iso codeR300-2570M-PM 4340
Length in1
Length range1.0000+
Manufacturers catalog numberR300-2570M-PM 4340
Manufacturer grade4340
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeP40; M40; K40
Maximum depth of cut0.1465
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/16
Thickness range0.2500 to 0.3500
Width in1
