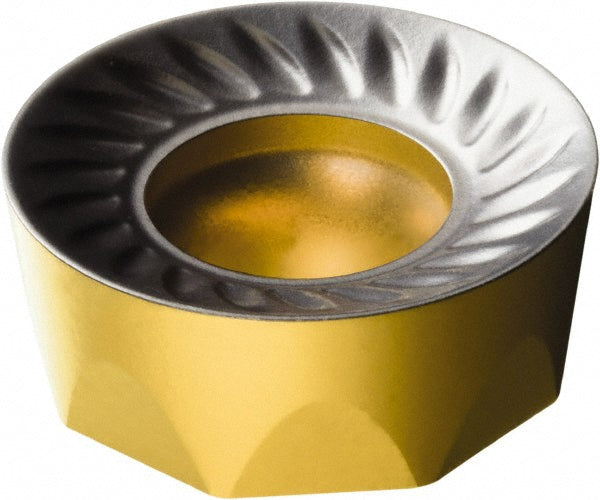

RCKT 12 04 M0-PM 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564613

Sandvik Coromant

RCKT 12 04 M0-PM 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564613

MFR# 7564613ISO/ANSI# RCKT 12 04 M0-PM 4340Cat# RCKT 12 04 M0-PM 4340Series RCKT

$18.70List $23.98 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
Grade4340
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564613 is a RCKT 12 04 M0-PM 4340 solid carbide indexable insert, grade 4340, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi codeRCKT 12 04 M0-PM 4340
Chip breakerPM
Coating finishTiCN
Coating processCVD
Convex radius0.2362
Corner radius (mm)6.00
Cutter series compatibilitySRSC; SRDC
Cutting edge styleRounded
Hole diameter0.1575
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1204M0
Insert styleRCKT
Iso codeRCKT 12 04 M0-PM 4340
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberRCKT 12 04 M0-PM 4340
Manufacturer grade4340
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeP40; M40; K40
Maximum depth of cut0.0693
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.4724
