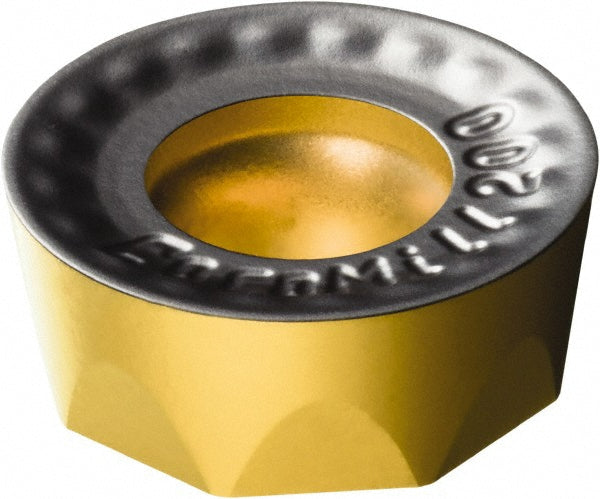

RCKT 13 04 00-PH 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564615
MFR# 7564615ISO/ANSI# RCKT 13 04 00-PH 4340Cat# RCKT 13 04 00-PH 4340Series RCKT
$17.31List $22.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRound
Grade4340
MaterialSolid Carbide
CoatingTiCN
Description
The Sandvik Coromant 7564615 is a RCKT 13 04 00-PH 4340 solid carbide indexable insert, grade 4340, TiCN coated. Suited for steel, stainless steel, cast iron.
Specifications
Ansi codeRCKT 13 04 00-PH 4340
Chip breakerPH
Coating finishTiCN
Coating processCVD
Convex radius0.2500
Corner radius in1/4
Cutter series compatibilityN331.32; R331.32; RA200
Cutting edge styleRounded
Hole diameter0.1575
Included angle degree360
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size13
Insert size code130400
Insert styleRCKT
Iso codeRCKT 13 04 00-PH 4340
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberRCKT 13 04 00-PH 4340
Manufacturer grade4340
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeP40; M40; K40
Maximum depth of cut0.0732
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
