Sandvik Coromant

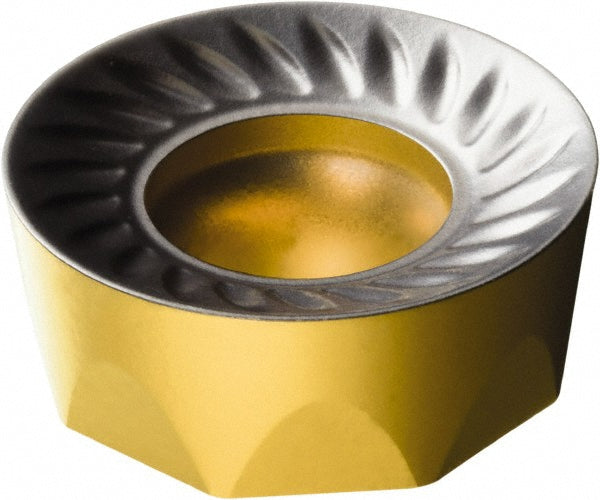

RCKT 16 06 M0-PM 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564621
MFR# 7564621ISO/ANSI# RCKT 16 06 M0-PM 4340Cat# RCKT 16 06 M0-PM 4340Series RCKT
$27.07List $34.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
Grade4340
MaterialSolid Carbide
CoatingTiCN
Description
The Sandvik Coromant 7564621 is a RCKT 16 06 M0-PM 4340 solid carbide indexable insert, grade 4340, TiCN coated. Suited for steel, stainless steel, cast iron.
Specifications
Ansi codeRCKT 16 06 M0-PM 4340
Chip breakerPM
Coating finishTiCN
Coating processCVD
Convex radius0.3150
Corner radius (mm)8.00
Cutter series compatibility391.68S; C5-SRDC; C5-SRSC; C6-SRDC; C6-SRSC
Cutting edge styleRounded
Hole diameter0.2165
Included angle degree360
Inscribed circle0.6299
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size16
Insert size code1606M0
Insert styleRCKT
Iso codeRCKT 16 06 M0-PM 4340
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberRCKT 16 06 M0-PM 4340
Manufacturer grade4340
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeP40; M40; K40
Maximum depth of cut0.0921
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width0.6299
