Sandvik Coromant
QFU-K-0600-04-TF 1125 Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 7582640
MFR# 7582640ISO/ANSI# QFU-K-0600-04-TF 1125Series CoroCut QF
$29.93List $38.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description

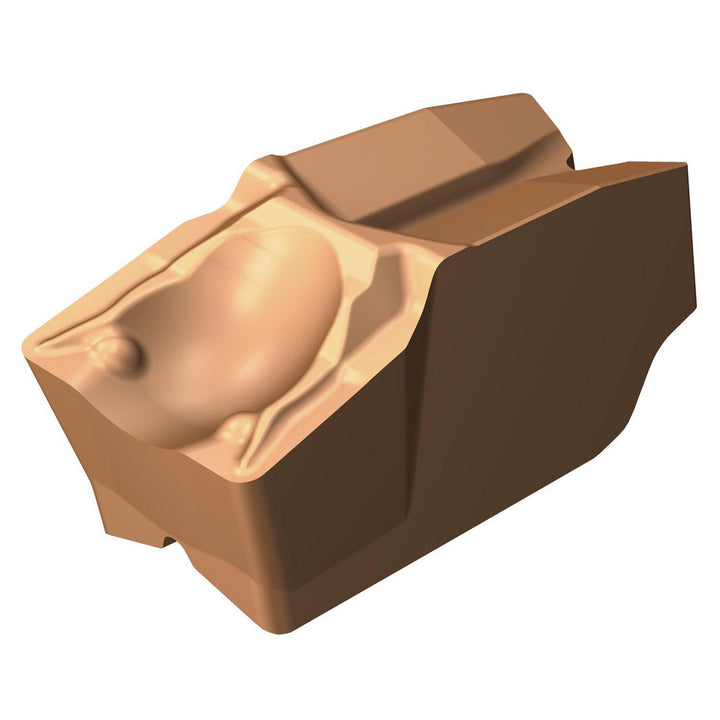

The Sandvik Coromant 7582640 is a QFU-K-0600-04-TF 1125 solid carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerTF
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Cutting width0.2362
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeL
Insert size0600
Insert size codeK
Insert styleQFU
Iso codeQFU-K-0600-04-TF 1125
Manufacturer grade1125
Maximum depth of cut (mm)3.00
Maximum depth of cut range (mm)3.00 to 4.00
Primary workpiece materialSteel
Rake angle7.00
Secondary workpiece materialStainless Steel
