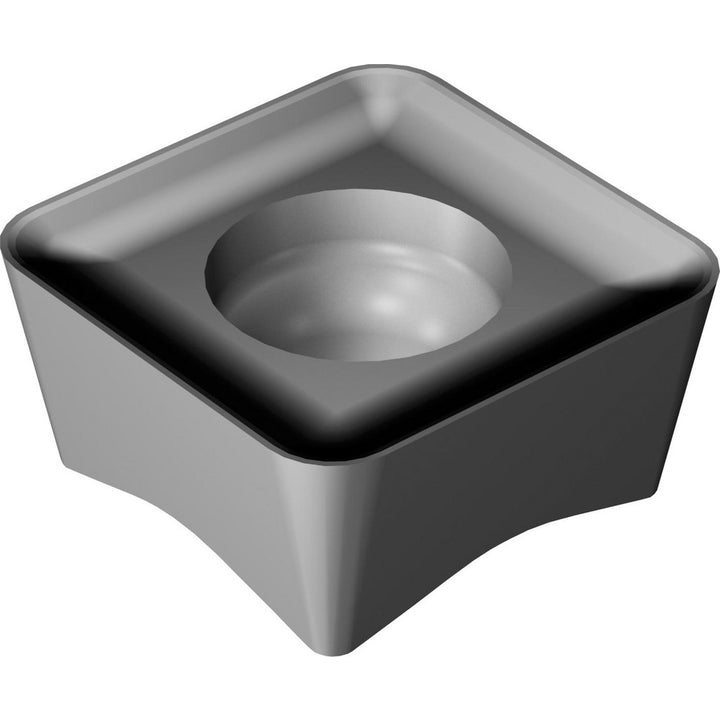

415N-07 03 20M-M30 S30T Cermet Insert, Grade S30T, TiAlN - Sandvik Coromant 7855860

Sandvik Coromant

415N-07 03 20M-M30 S30T Cermet Insert, Grade S30T, TiAlN - Sandvik Coromant 7855860

MFR# 7855860ISO/ANSI# 415N-07 03 20M-M30 S30TCat# 415N-07 03 20M-M30 S30TSeries 415

$20.78List $26.65 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeS30T
MaterialCermet
CoatingTiAlN

Description

The Sandvik Coromant 7855860 is a 415N-07 03 20M-M30 S30T cermet indexable insert, grade S30T, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi code415N-07 03 20M-M30 S30T
Chip breakerM30
Coating finishTiAlN
Coating processPVD
Corner radius0.0787
Cutter series compatibility415
Cutting edge styleCorner Rounded
Hole diameter0.1102
Included angle degree90
Inscribed circle0.2756
Inscribed circle range0.2500 to 0.3000
Insert handNeutral
Insert holding methodScrew
Insert materialCermet
Insert shapeSquare
Insert size07
Insert size code070320
Insert style415
Iso code415N-07 03 20M-M30 S30T
Length0.2756
Length range0.0000 to 0.3200
Manufacturers catalog number415N-07 03 20M-M30 S30T
Manufacturer gradeS30T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM25; S25
Maximum depth of cut0.0472
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle20
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1209
Thickness range0.1000 to 0.1250
Width0.2756
