Sandvik Coromant
DNMX 15 06 08-WF 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859074
MFR# 7859074ISO/ANSI# DNMX 15 06 08-WF 4415Cat# DNMX 442-WF 4415Series T-Max P
$30.30List $38.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description

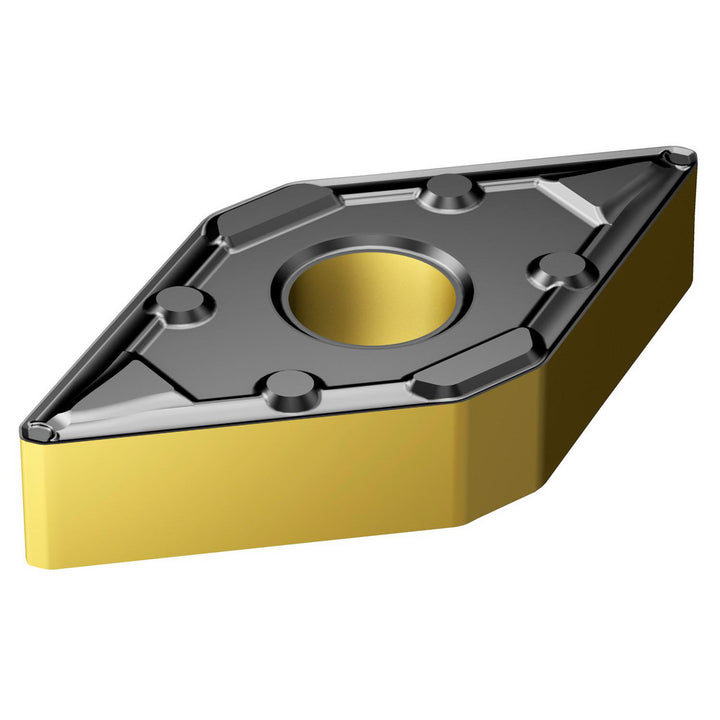

The Sandvik Coromant 7859074 is a DNMX 15 06 08-WF 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerWF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Hole diameter0.2030
Included angle55
Inscribed circle0.2030
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1506
Insert styleDNMX
Insert thickness in1/4
Iso codeDNMX 15 06 08-WF 4415
Manufacturers catalog numberDNMX 442-WF 4415
Manufacturer grade4415
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeYes
