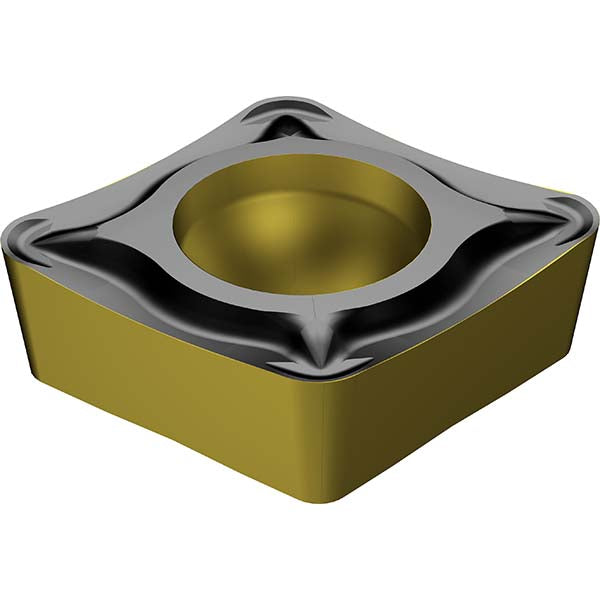

CCMT 09 T3 08-UM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859091

Sandvik Coromant

CCMT 09 T3 08-UM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859091

MFR# 7859091ISO/ANSI# CCMT09T308Cat# CCMT 3(2.5)2-UM 4415Series CoroTurn 107

$17.81List $22.84 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
Grade4415
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 7859091 is a CCMT 09 T3 08-UM 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.

Specifications

Ansi insert codeCCMT32.52
Ansi size code32.52
Chip breakerUM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code09T3
Insert styleCCMT
Insert thickness0.1563
Iso codeCCMT 09 T3 08-UM 4415
Iso insert codeCCMT09T308
Iso size code09T308
Manufacturers catalog numberCCMT 3(2.5)2-UM 4415
Manufacturer grade4415
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Side clearancePositive
Tolerance codeM
Wiper edgeNo
