Sandvik Coromant

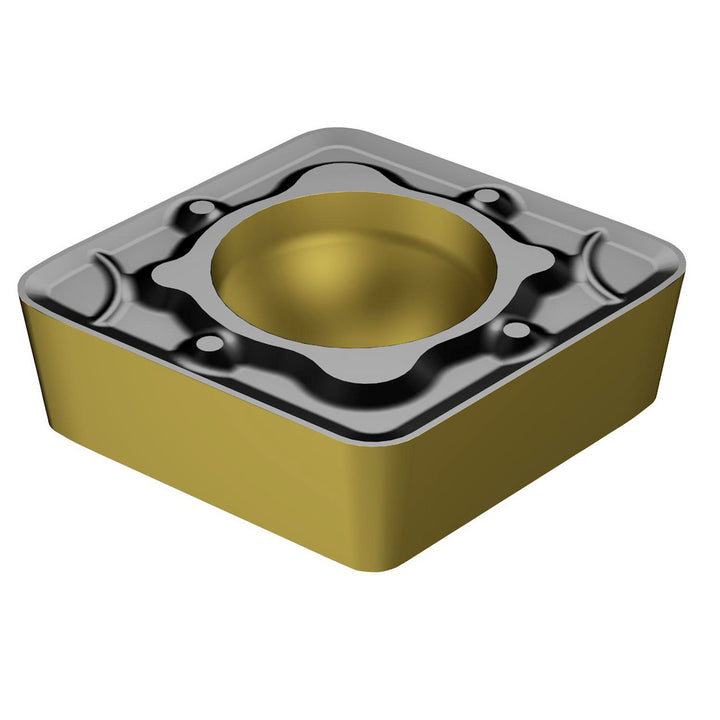

CCMT 12 04 04-WM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859096
MFR# 7859096ISO/ANSI# CCMT 12 04 04-WM 4415Cat# CCMT 431-WM 4415Series CoroTurn 107
$28.92List $37.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859096 is a CCMT 12 04 04-WM 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerWM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Hole diameter0.2165
Included angle80
Inscribed circle0.2165
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1204
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT 12 04 04-WM 4415
Manufacturers catalog numberCCMT 431-WM 4415
Manufacturer grade4415
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeYes
