Sandvik Coromant

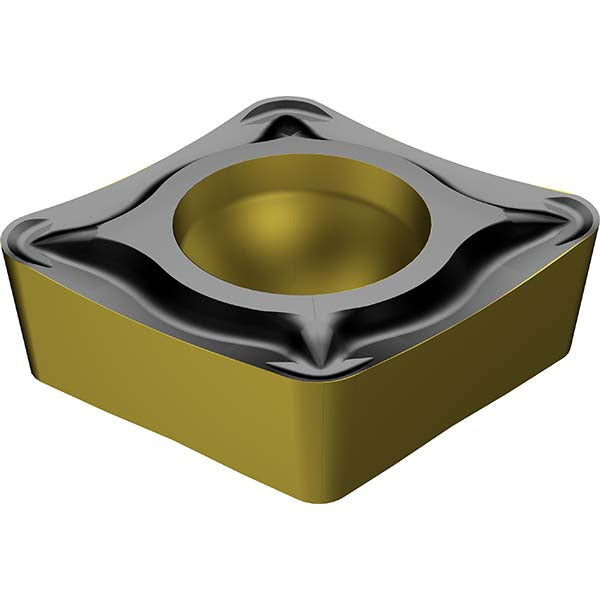

CCMT 12 04 08-UM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859099
MFR# 7859099ISO/ANSI# CCMT120408Cat# CCMT 432-UM 4415Series CoroTurn 107
$24.88List $31.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859099 is a CCMT 12 04 08-UM 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Ansi insert codeCCMT432
Ansi size code432
Chip breakerUM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code1204
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT 12 04 08-UM 4415
Iso insert codeCCMT120408
Iso size code120408
Manufacturers catalog numberCCMT 432-UM 4415
Manufacturer grade4415
Relief angle7
Side clearancePositive
Tolerance codeM
