Sandvik Coromant

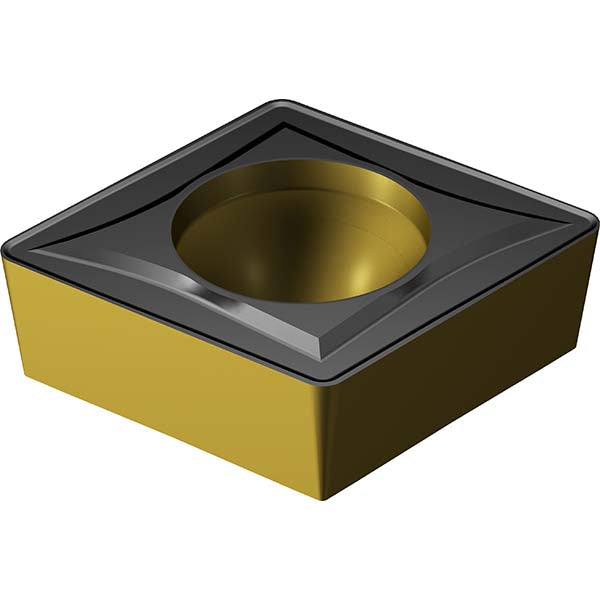

CCMT 12 04 08-UR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859100
MFR# 7859100ISO/ANSI# CCMT 12 04 08-UR 4415Cat# CCMT 432-UR 4415Series CoroTurn 107
$23.49List $30.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859100 is a CCMT 12 04 08-UR 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1204
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT 12 04 08-UR 4415
Manufacturers catalog numberCCMT 432-UR 4415
Manufacturer grade4415
Relief angle7
Tolerance codeM
