Sandvik Coromant

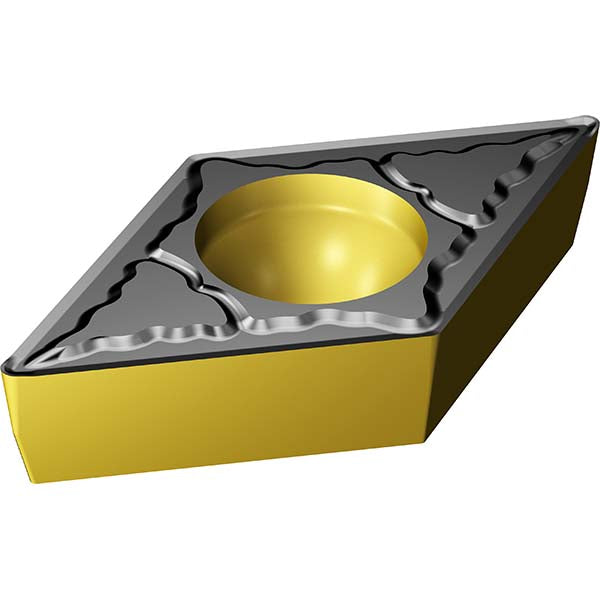

DCMT 07 02 04-PM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859105
MFR# 7859105ISO/ANSI# DCMT 07 02 04-PM 4415Cat# DCMT 2(1.5)1-PM 4415Series CoroTurn 107
$14.19List $18.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859105 is a DCMT 07 02 04-PM 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Hole diameter0.1102
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT 07 02 04-PM 4415
Manufacturers catalog numberDCMT 2(1.5)1-PM 4415
Manufacturer grade4415
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
