Sandvik Coromant

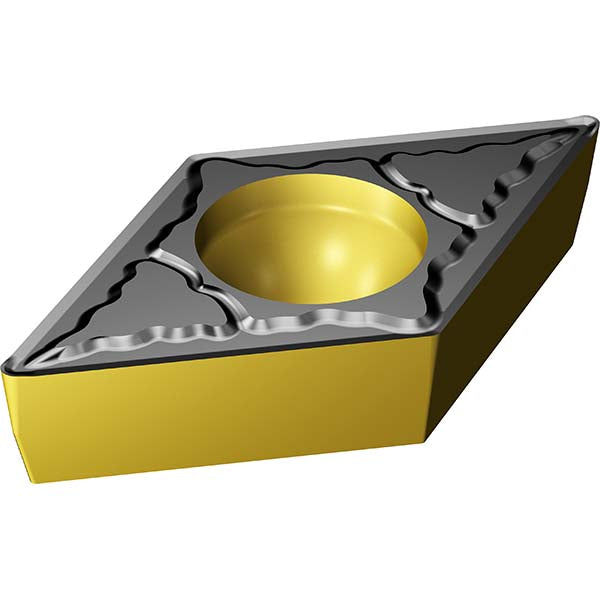

DCMT 11 T3 12-PM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859118
MFR# 7859118ISO/ANSI# DCMT 11 T3 12-PM 4415Cat# DCMT 3(2.5)3-PM 4415Series CoroTurn 107
$20.59List $26.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859118 is a DCMT 11 T3 12-PM 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code11T3
Insert styleDCMT
Insert thickness0.1563
Iso codeDCMT 11 T3 12-PM 4415
Manufacturers catalog numberDCMT 3(2.5)3-PM 4415
Manufacturer grade4415
Relief angle7
Tolerance codeM
