Sandvik Coromant
SCMT 09 T3 04-PM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859125
MFR# 7859125ISO/ANSI# SCMT 09 T3 04-PM 4415Cat# SCMT 3(2.5)1-PM 4415Series CoroTurn 107
$17.97List $23.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
Grade4415
MaterialCarbide
CoatingTiCN
Description

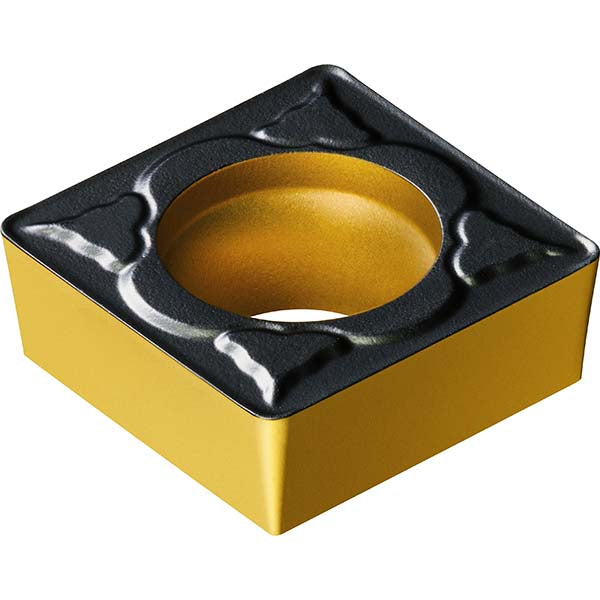

The Sandvik Coromant 7859125 is a SCMT 09 T3 04-PM 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Hole diameter0.1732
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code09T3
Insert styleSCMT
Insert thickness0.1563
Iso codeSCMT 09 T3 04-PM 4415
Manufacturers catalog numberSCMT 3(2.5)1-PM 4415
Manufacturer grade4415
Number of cutting edges4
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
