Sandvik Coromant

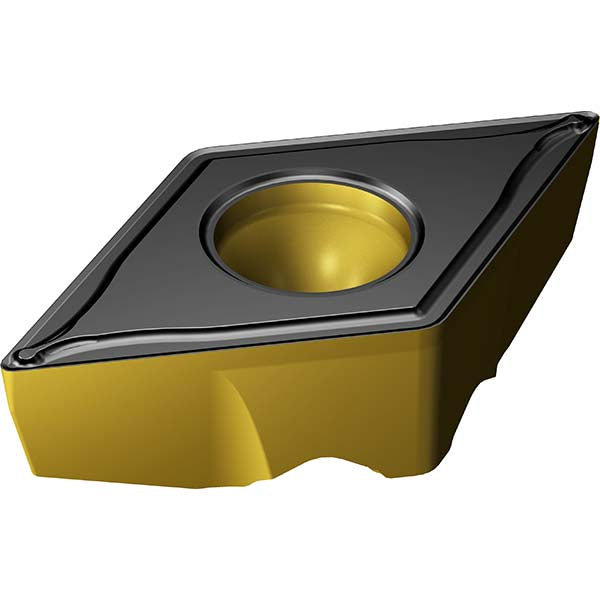

TR-DC1312-M 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859143
MFR# 7859143ISO/ANSI# TR-DC1312-M 4415Cat# TR-DC1312-M 4415Series CoroTurn TR
$22.07List $28.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859143 is a TR-DC1312-M 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Included angle55
Inscribed circle0.4331
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1312
Insert styleTRDC
Insert thickness0.2175
Iso codeTR-DC1312-M 4415
Manufacturers catalog numberTR-DC1312-M 4415
Manufacturer grade4415
Relief angle7
