Sandvik Coromant

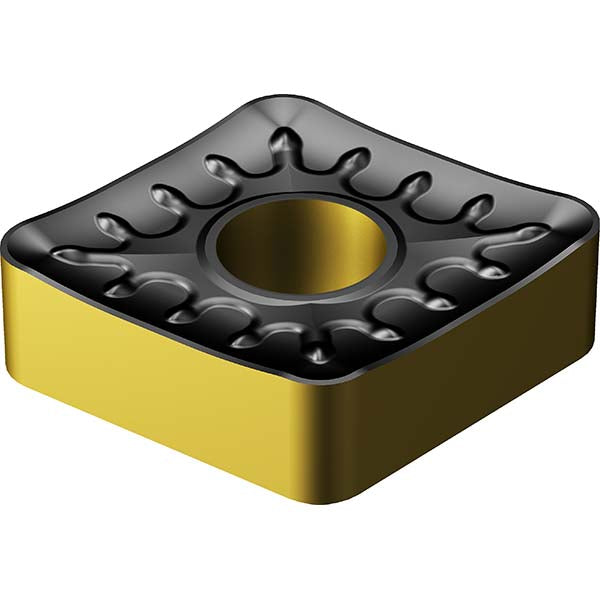

CNMM 12 04 16-QR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859153
MFR# 7859153ISO/ANSI# CNMM 12 04 16-QR 4415Cat# CNMM 434-QR 4415Series T-Max P
$20.77List $26.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859153 is a CNMM 12 04 16-QR 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1204
Insert styleCNMM
Insert thickness in3/16
Iso codeCNMM 12 04 16-QR 4415
Manufacturers catalog numberCNMM 434-QR 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
