Sandvik Coromant

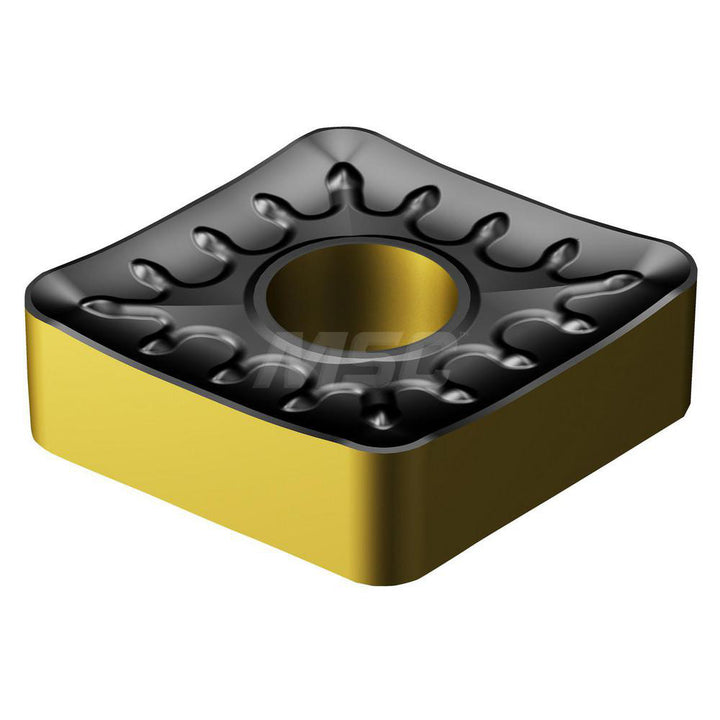

CNMM 16 06 12-QR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859154
MFR# 7859154ISO/ANSI# CNMM 16 06 12-QR 4415Cat# CNMM 543-QR 4415Series T-Max P
$29.64List $38.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859154 is a CNMM 16 06 12-QR 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerQR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Hole diameter0.2500
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1606
Insert styleCNMM
Insert thickness in1/4
Iso codeCNMM 16 06 12-QR 4415
Manufacturers catalog numberCNMM 543-QR 4415
Manufacturer grade4415
Number of cutting edges2
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
