Sandvik Coromant
DNMG 11 04 08-LC 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859160
MFR# 7859160ISO/ANSI# DNMG 11 04 08-LC 4415Cat# DNMG 332-LC 4415Series T-Max P
$19.71List $25.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description

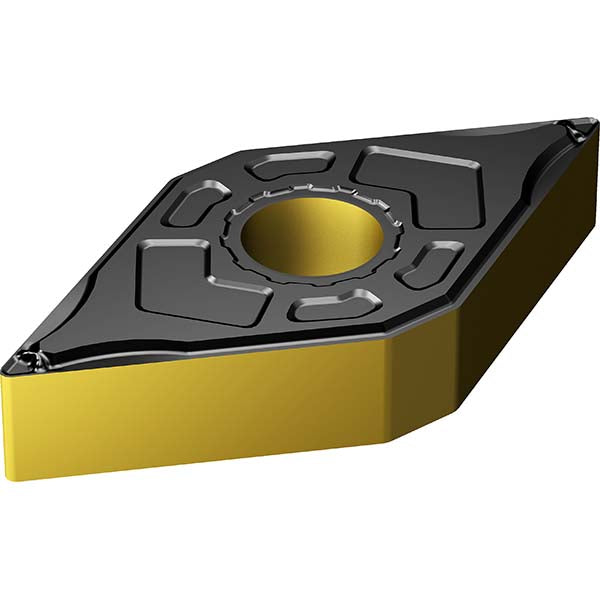

The Sandvik Coromant 7859160 is a DNMG 11 04 08-LC 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1104
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 11 04 08-LC 4415
Manufacturers catalog numberDNMG 332-LC 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
