Sandvik Coromant

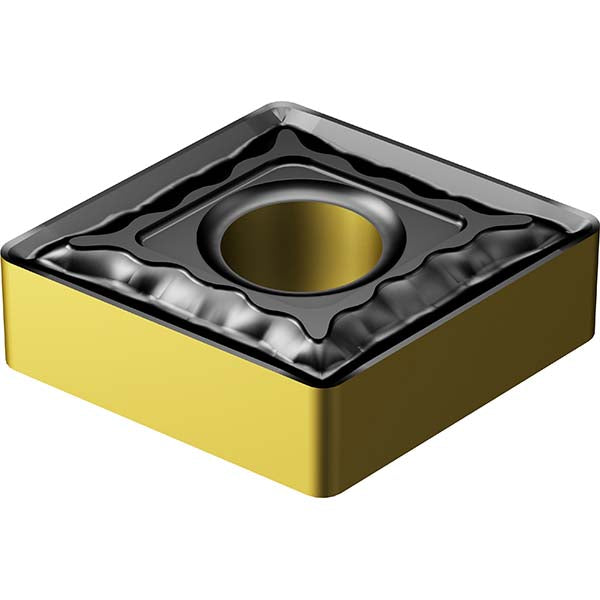

CNMG 09 03 04-QM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859168
MFR# 7859168ISO/ANSI# CNMG 09 03 04-QM 4415Cat# CNMG 321-QM 4415Series T-Max P
$12.75List $16.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859168 is a CNMG 09 03 04-QM 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Hole diameter0.1500
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code0903
Insert styleCNMG
Insert thickness in1/8
Iso codeCNMG 09 03 04-QM 4415
Manufacturers catalog numberCNMG 321-QM 4415
Manufacturer grade4415
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
