Sandvik Coromant

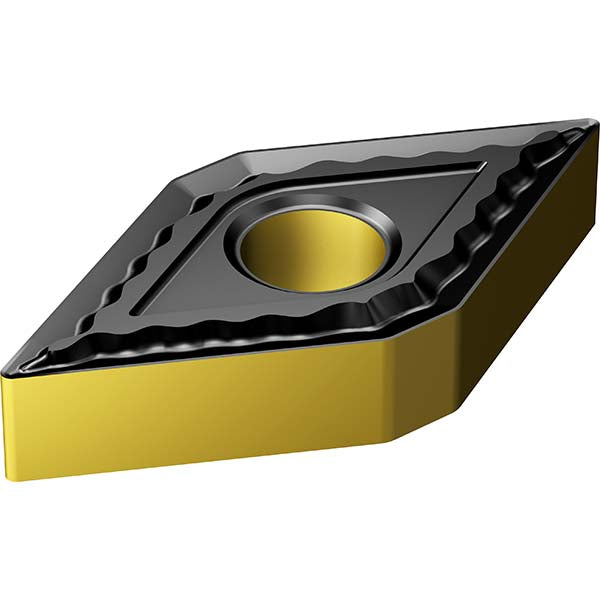

DNMG 15 04 12-QM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859183
MFR# 7859183ISO/ANSI# DNMG 15 04 12-QM 4415Cat# DNMG 433-QM 4415Series T-Max P
$26.15List $33.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859183 is a DNMG 15 04 12-QM 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1504
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 15 04 12-QM 4415
Manufacturers catalog numberDNMG 433-QM 4415
Manufacturer grade4415
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
