Sandvik Coromant

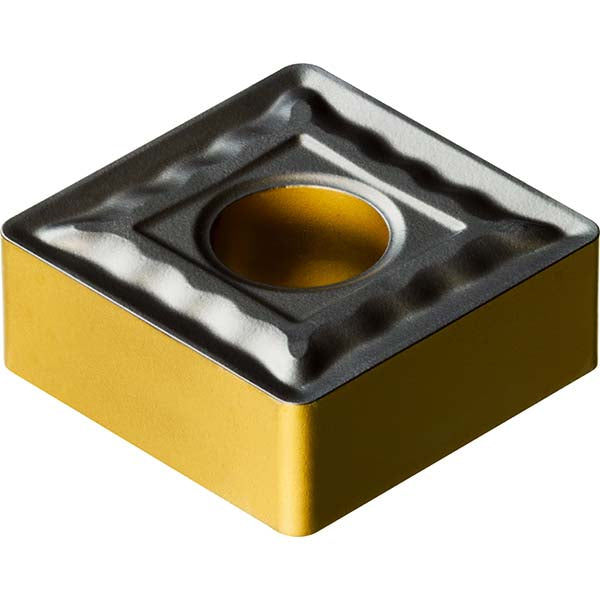

SNMG 09 03 08-QM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859188
MFR# 7859188ISO/ANSI# SNMG 09 03 08-QM 4415Cat# SNMG 322-QM 4415Series T-Max P
$11.38List $14.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859188 is a SNMG 09 03 08-QM 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code0903
Insert styleSNMG
Insert thickness in1/8
Iso codeSNMG 09 03 08-QM 4415
Manufacturers catalog numberSNMG 322-QM 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
