Sandvik Coromant

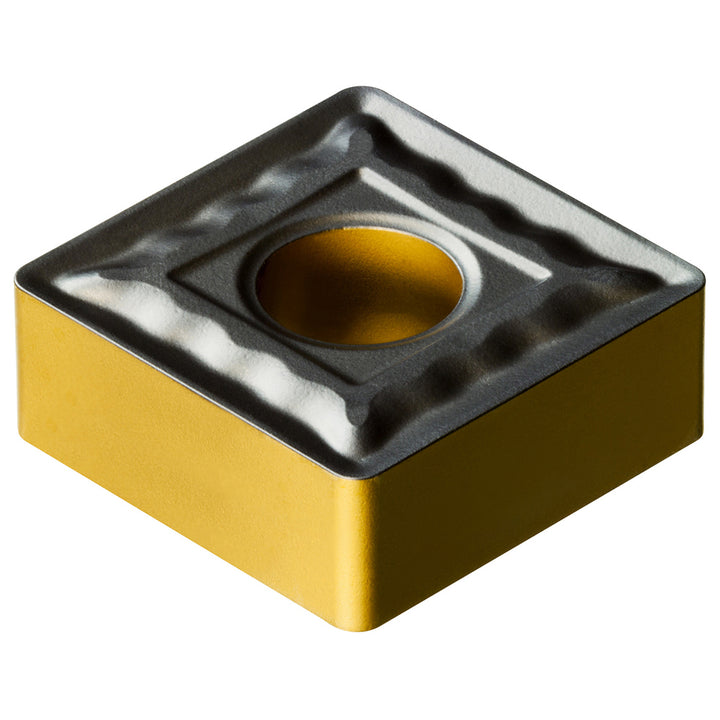

SNMG 19 06 12-QM 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7859191
MFR# 7859191ISO/ANSI# SNMG 19 06 12-QM 4415Cat# SNMG 643-QMSeries T-Max P
$46.04List $59.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeTrigon
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7859191 is a SNMG 19 06 12-QM 4415 carbide indexable insert, grade 4415, Al2O3 coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Industry standard numberSNMG 19 06 12-QM 4415
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTrigon
Insert size code190612
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG 19 06 12-QM 4415
Manufacturers catalog numberSNMG 643-QM
Manufacturer grade4415
Relief angle0
Tolerance codeM
