Sandvik Coromant
SNMM 19 06 12-PR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859218
MFR# 7859218ISO/ANSI# SNMM 19 06 12-PR 4415Cat# SNMM 643-PR 4415Series T-Max P
$45.64List $58.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeSquare
Grade4415
MaterialCarbide
CoatingTiCN
Description

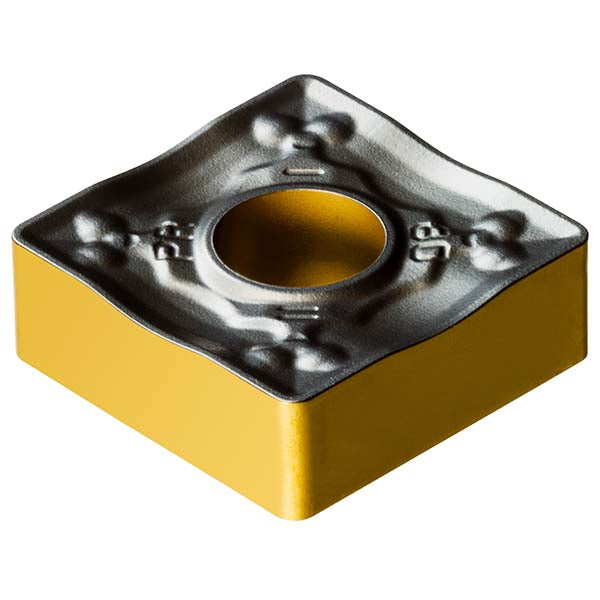

The Sandvik Coromant 7859218 is a SNMM 19 06 12-PR 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Hole diameter0.3120
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code1906
Insert styleSNMM
Insert thickness in1/4
Iso codeSNMM 19 06 12-PR 4415
Manufacturers catalog numberSNMM 643-PR 4415
Manufacturer grade4415
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
