Sandvik Coromant

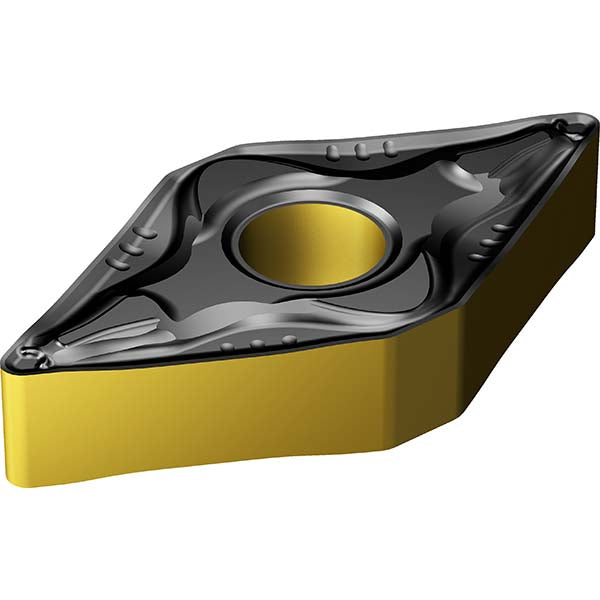

DNMG 11 04 12-PM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859233
MFR# 7859233ISO/ANSI# DNMG 11 04 12-PM 4415Cat# DNMG 333-PM 4415Series T-Max P
$21.90List $28.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859233 is a DNMG 11 04 12-PM 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1104
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 11 04 12-PM 4415
Manufacturers catalog numberDNMG 333-PM 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
